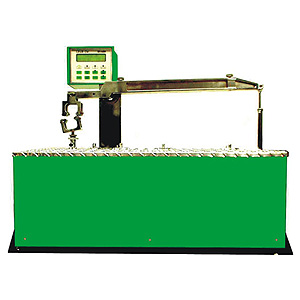

APPARATUS FOR MOULDING SAND STRENGTH TESTING LRuE-

Application:
The apparatus is used for testing on standard specimens the mechanical properties of moulding and core sands in green, dry or chemically hardened conditions. The data can be transmitted to a PC computer and analyzed there.

TECHNICAL DATA
Supply valtage .....................................................220 V, 50 Hz
Power rating ..............................................................~ 100 W
Grade of accurancy ..........................................................1,0%
Total weight with standard accessories .......................190 kg



UNIVERSEEL VASTHEIDS TESTAPPARAAT TYPE LRuE-2E

Toepassing:
Meten van vastheidseigenschappen van kernzand in vochtige, droge, resp. uitgeharde toestand.

Technische gegevens:
Spanning...................................220 V / 50 Hz
Vermogen..................................100 W
Nauwkeurigheid.......................1%
Gewicht.......................................190 kg.





UNIVERSALFESTIGKEISPRUFGERAT LRuE-2E

Anwendung:
Das Gerät dient zur Messung der Festigkeitseigenschaften (Druck-, Spalt-,Scher- Zug-,und Biegefestigkeit) von Form- und Kernsand in feuchtem, trockenem bzw. ausgehärtetem Zustand. Das elektronische Prüfgerät LRuE-2e hat eine Schnittstelle für einen Personalcomputer bzw. einen Drucker

Technische Daten
Speisespannung..............................................220 V, 50 Hz
Nennleistung ..............................................................~ 100 W
Exaktheit ..........................................................................1,0%
Gewicht des Apparates samt Zubehör ..........................190 kg

Measuring ranges - Meetbereik - Messbereiche

Compression -Drukvastheid - Druckfestigkeit:

RcI ..........................0 - 7,5 N/cm2
RcII ....................5,4 - 15,0 N/cm2
RcIII ...................9,0 - 75,0 N/cm2
RcIV ................54,0 - 150,0 N/cm2
RcV ..................90,0 - 250,0 N/cm2
RcVI ...............180,0 - 500,0 N/cm2

Shear - Scherfestigkeit - Vastheid

RtI ...........................0 - 6,0 N/cm2
RtII .....................4,5 - 12,0 N/cm2
RtIII ....................9,0 - 60,0 N/cm2
RtIV .................45,0 - 120,0 N/cm2
RtV ...................90,0 - 200,0 N/cm2
RtVI ................150,0 - 400,0 N/cm2

Tensile - buigvastheid - Biegefestigkeit:

RgI .......................0 - 300,0 N/cm2
RgII ...............225,0 - 600,0 N/cm2
RgIII ............450,0 - 3000,0 N/cm2
RgIV ...........2250,0 - 6000,0 N/cm2

Bending - Achtzugfestigkeit - trekvastheid

RmI .......................0 - 100,0 N/cm2
RmII .................75,0 - 200,0 N/cm2
RmIII ................90,0 - 250,0 N/cm2
RmIV ...............180,0 - 500,0 N/cm2
