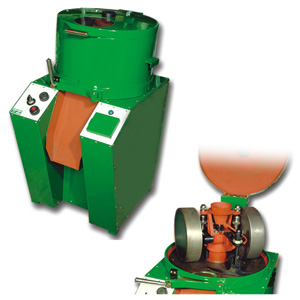

LABORATORY MIXER LM-2e
APPLICATION
The laboratory mixer is used for preparation of self-setting moulding and core sands.


LABORATORIUM MIXER LM-2e
TOEPASSING
de laboratrium mixer wordt gebruikt voor de bereiding van vorm- en kernzand


LABORKOLLERMISCHER LM-2e
ANWENDUNG
Der Labormischer dient zur Aufbereitung von tongebundenen Formstoffen


TECHNICAL DATA - TECHNISCHE GEGEVENS - TECHNISCHE DATEN:

Maximum capacity of mixer pan .........................................6 kg
Width of runners ...........................................................70 mm
Runner weight in heads I and II ..................................11.5 kg
Runner weight in head III ............................................30.0 kg
Pressure adjustment range ..................................115 - 330 N
Capacity of water container ........................................0.3 dm3
Rotational speed of the mixing unit .........................40 rev/min
Supply voltage ................................................................380 V
Power consumption .......................................approx. 1200 VA
Electric shock protection .............................................earthing
Control of mixer operation:

a/ manual with the use of push-buttons - unlimited mixing time

b/ automatic: controlled time of mixing




Technische Daten

Mischmengen ............................................................3 bis 6 kg
Umdrehungszahl des Rührwerkes ............................40 U./min.
Mischzeiten:
- handgesteuert ..........................................................beliebig
- automatisch gesteuert .......................................1 bis 99 min
Nennspannung .................................................3x380 V, 50 Hz
Nennleistung .................................................................1,1 kW
Abmaß ........................................................720x550x1000 mm
Gewicht .........................................................................170 kg
