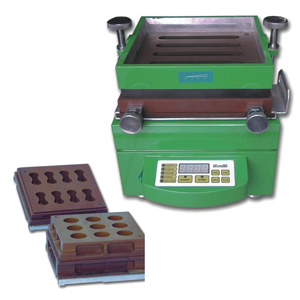

APPARATUS FOR VIBRATION COMPACTING OF SPECIMENS TYPE LUZ-1e

Application:
The apparatus is assigned for preparation of standard laboratory specimens cylindrical. octagonal and oblong made of loose self-setting moulding and core sands, used for the determination of:
mechanical properties, i.e compression strength, shear strength, tensile strength and bending strength,
permeability, friability, deflection, etc.
The apparatus enables simultaneous testing of 6 to 9 specimens characterized by the same degree of compaction.


APPARAAT t.b.v. (VIBRATIE)VERDICHTING type LUZ-1e

Toepassing:
Apparaat dient voor de vervaardiging van Prüfkörper
van zelfhardend vorm- en kernzand.



APPARATUR ZUR VIBRATIONSVERDICHTUNG MIT ELEKTRONISCHER STEUERUNG LUZ-1e

Anwendung:
Das Gerät dient zur Fertigung von PrüfKörpern aus selbshärtenden Form- und Kernsand ( Zylinder-Stab- und Achterprüfkörper).

Technische Daten

Vibrationszeit ...............................................................1 - 30 s
Schwingungsamplitude ..............................................0-1,5 mm
Nennleistung ..................................................................400 W
Nennspannung .....................................................220 V, 50 Hz
Abmaße ....................................................340 x 320 x 330 mm
Gewicht ...........................................................................63 kg

LUZ-1e/w *
*Diese Vorrichtung muß zusätzlich bestellt werden



TECHNICAL DATA - TECHNISCHE GEGEVENS:

Time of compacting stepwise controlled .........................0-30 s
Amplitude of vibrations .................................................0-2 mm
Frequency of vibrations ...................................................50 Hz
Supply voltage .....................................................220 V, 50 Hz
Power consumption .............................................up to 400 VA
Overall dimensions ...................................340 x 320 x 330 mm
Total weight ....................................................................63 kg

LUZ-1e/w *
*Accessories, supplied separately upon request.
