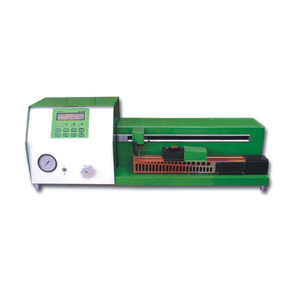

Apparatus for determination of the softening point of resin coated moulding sands LTM-1e

APPLICATION
The apparatus is designed for determination of the softening point of moulding sands hot coated with phenol-formaldehyde resin, used for making shell moulds and cores.

TECHNICAL DATA
Temperature of adjustable measuring strip............60 - 120 °C
Time of softening............................................................... 60 s
Pressure o fair blow.................................................... 0.1 MPa
Supply voltage ........................................................220V/50Hz
Power consumption .......................................................250 W
Overall dimensions................................... 850 x 300 x 330 mm
Total weight ....................................................................37 kg



Apparatur zur Bestimmung der Aushärtung von Hot-Box Formstoff LTM-1e

Anwendung
Das Gerät dient zur Bestimmung der Aushärtungs-Temperaturen von umhüllten Sanden.

Technische Daten
Messleiste Temperatur ...........................................60 - 120 °C
Aufwärmzeit ......................................................................60 s
Benötigter Luftdruck ....................................................0,1 MPa
Nennleistung .................................................................250 W
Nennspannung ....................................................220 V, 50 Hz
Abmaße ....................................................850 x 300 x 330 mm
Gewicht ...........................................................................37 kg
