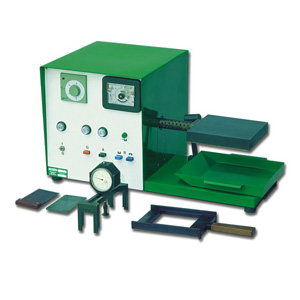

Apparatus for determination
of shell thickness LGS-1

APPLICATION
The apparatus is used for testing of resin coated sands. It enables the determination of shell thickness and hardening time at a preset temperature.

TECHNICAL DATA
Hardening temperature ......................................250 +/- 5 °C
Recommended controlled time of hardening.................10-30 s
Supply volltage .....................................................220 V, 50 Hz
Power consumption .....................................................1100 W
Overall dimensions....................................555 x 330 x 300 mm
Total weight ....................................................................33 kg




Apparatur zur Bestimmung der Krustenbildung von Hot-Box Formstoff LGS - 1

Anwendung
Das Gerät dient zur Bestimmung der Zeit und die Stärke (Dicke) der Krustenbildung.

Technische Daten
Aufhärtungs-Temperatur .......................................250 +/- 5 °C
Aufhärtungs-Zeit ........................................................10 - 30 s
Nennleistung ................................................................1100 W
Nennspannung .....................................................220 V, 50 Hz
Abmaße .............................555 x 330 x 300 mm Gewicht 33 kg
