FOR SALE:

IDRA OL 1800, new in 2012

IDRA OL 1800, new in 2013

Quotation on request

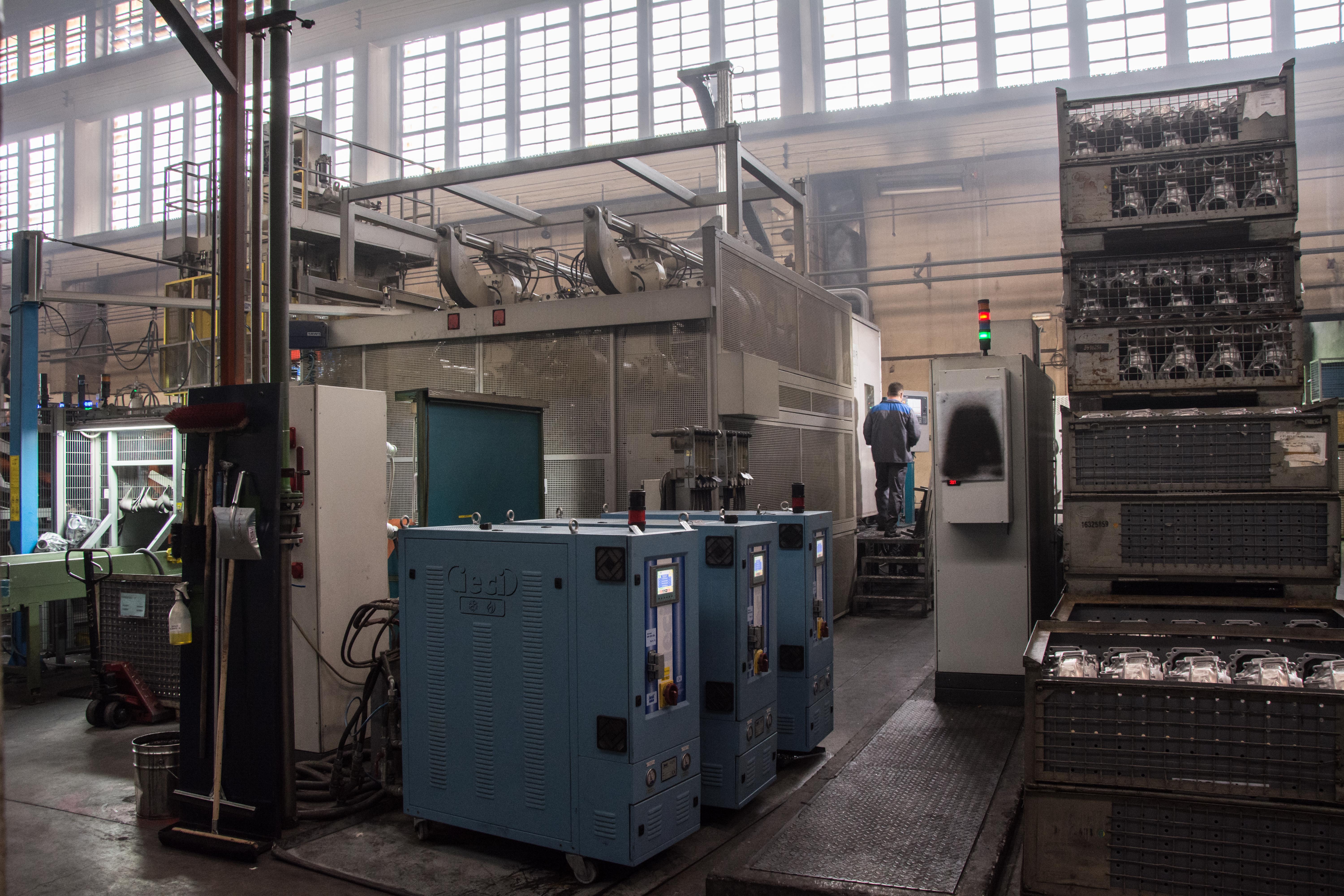

No. 1 Two-Platen Cold Chamber Aluminium High Pressure Die Casting Machine
Series “REVOLUTION”
model OL 1800 R

TWO-PLATEN DIE CASTING MACHINE TECHNICAL DATA
SERIES “REVOLUTION” MODEL OL 1800 R
Clamping force KN 18.530
Injection force (back pressure 0/20) KN 1.193/1.080
Central ejection force KN 630
Max. die height mm 1450
Min. die height mm 750
Platen dimensions mm 1.960 x 1.960
Distance between tie bars mm 1.225 x 1.225
Tie bar diameter mm 275
Moving platen stroke mm 1.300
Injection stroke mm 900
Central ejection stroke mm 255
Line pressure Bar 160
Max. shot weight (Al alloy) Kg. 12,1
Max. projected area (400 bar) cm2 4.462
Pump motor power kW 2 x 37
Machine weight T 80
Machine overall dimensions
(L x W x H)
mm 9.800 x 4.400 x 4.600


The machine supply does not include:
- Injection sleeve, rod and plunger
- nitrogen charge
- non-flammable hydraulic fluid, glycol water
- installation
- VAT
- insurance
- transport
- any other items not specifically stated
