VERKOCHT !! - SOLD !! - VERKAUFT !!

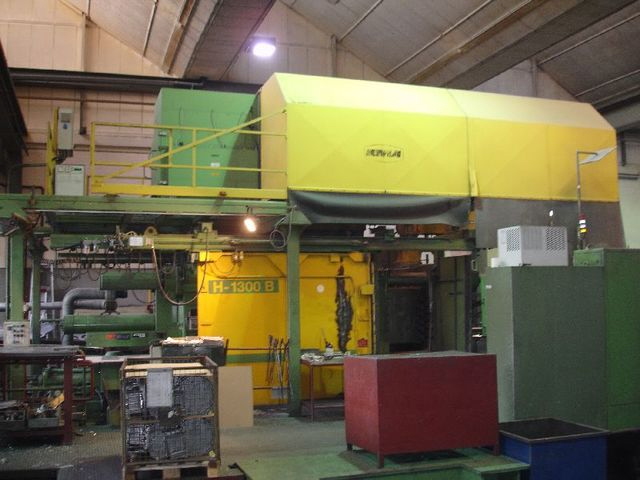

1 second-hand horizontal cold chamber
pressure die casting machine
-------------------------------------

Make: BÜHLER
Model: GDV H-1300 B
New in: 1993

The machine is equipped with:
-----------------------------

- Tiebar withdrawel in frontside only
- 3-Phase-injection-system (Intensifier)
- Motorized die height adjustment
- Hydraulic ejector
- Connections to operate core pull unit
- Locking stroke safety device - electro-hydr.
- Central lubrication
- Pneumatic safety door
- Vapor exhaust device
- Dosing furnace STRIKO,Strikomat HD 1050/900 R,Baujahr:1993
- Take Out Robot by ABB,IRB 6600,new in 2006,(60 Kg)
- Plunger lubrication
- Hydraulic medium: water-glycol
- Datacess control DC 5 (appx.casting indication)

TECHNICAL SPECIFICATIONS:
=========================

Locking force 1300 tons
Ejector force 52 tons
Ejector stroke 220 mm
Min./max. die height 310 / 1090 mm
Mobile platen dimensions - h x v 1570 x 1825 mm
Firm platen dimensions - h x v 1570 x 1570 mm
Distance between tie-bars - h x v 1050 x 1050 mm
Tie-bar-diameter 205 mm
Stroke of mobile clamping plate 1000 mm
Injection plunger stroke 750 mm
Injection plunger-diameter 90 - 160 mm
Max. shot weight - Al 8,9 - 28,2 kg
Specific injection pressure on metal 1572 - 497 bar
Max. projected area with above pressure 785 - 2484 cm²
Driving capacity 102,5 kW
Floor space (length x width) approx. 11000 x 4000 mm
Height of the machine approx. 3500 mm
Weight approx. 67 t

Price on request !!!!
