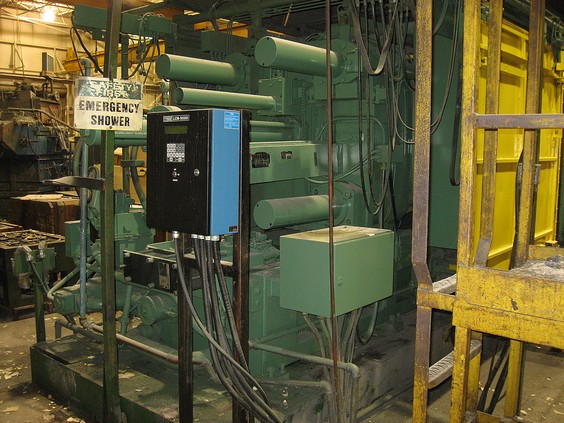

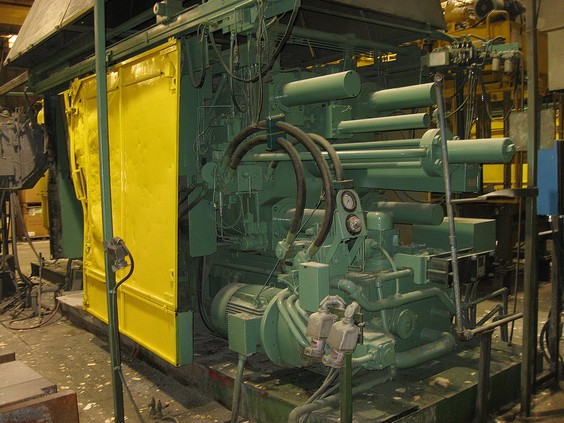

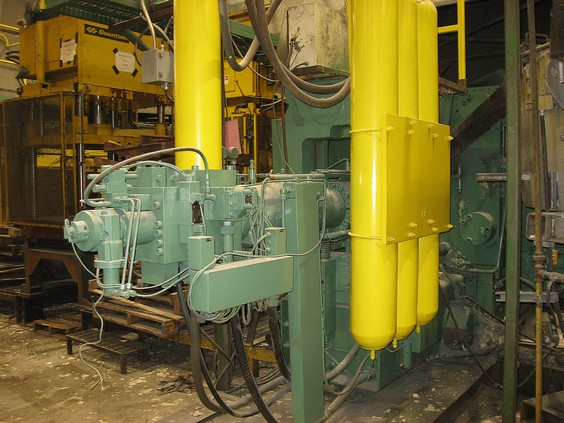

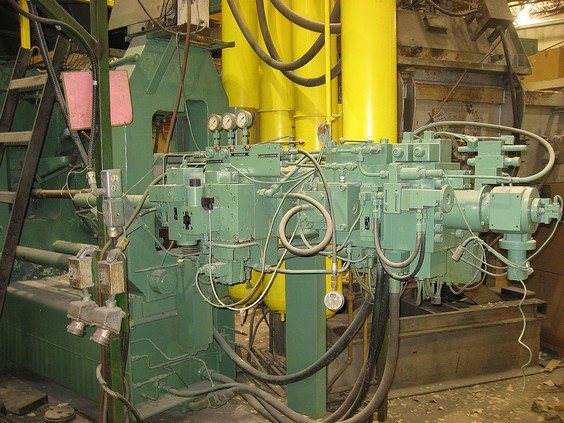

Horizontal - Cold Chamber - Die Casting Machine
Manufacturer: Buhler
Model: GDM H-630 B
Size: 725 ton
Year Manufactured: 1995
Reference No: 3824

PRICE EURO 65.000,-- EX WORKS


Specifications:

Locking Force: 725 ton
Distance Between Tie Bars: 780 x 780 mm
Tie Bar Diameter: 150 mm
Stationary Platen (W x H): 1210 x 1410 mm
Movable Platen (W x H): 1210 x 1210 mm
Die Height (min - max): 300 - 950 mm
Die Stroke: 780 mm
Shot Force: 26.5 - 65 ton
Shot Stroke: 580 mm
Shot Weight: 3,4.2,5.5,6.9,8.5,10.3,12.3
Shot Positions: 0, -50, -300, -350
Plunger Tip Diameter: 60, 70, 80, 90, 100, 110
Ejection Force: 34 ton
Ejection Stroke: 175 mm
Machine Weight (approx): 27,200 kg
Size (L x W x H): 9.0 x 2.9 x 3.2 m
