Prijs-Price-Preis.............................€ 18.500,--
===================================
Franco BENELUX en Duitsland.
FREI HAUS Deutschland und BENELUX
Delivery ; Free Destination Germany and BENELUX

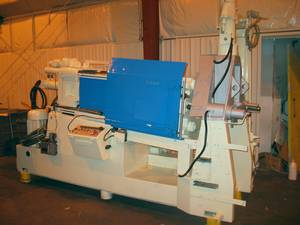

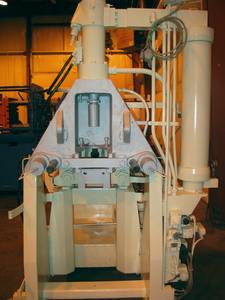

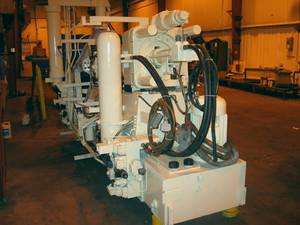

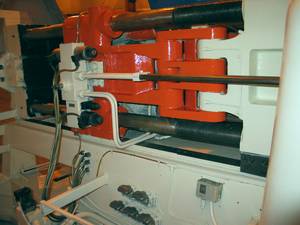

Frech DAM 100 warmkamer machine

Frech DAM 100 hot chamber machine

Frech DAM 100 Warmkammermaschine

Specifications: Metric Imperial
Locking Force: 100 ton 110 ton
Distance Between Tie Bars: 385 x 385 mm 15.1” x 15.1”
Tie Bar Diameter: 75 mm 2.9”
Ejector Force: 6 ton 6.6 ton
Die Opening Stroke: 310 mm 12.2"
Die Height (min/max): 200 – 500 mm 7.9" - 19.7"
Max. Casting: 1.5 - 2.8 kg 3.3 - 6.2 lbs
Diameter of Injection Plunger: 60 – 80 mm 2.4 - 3.1"
Machine Weight (approx): 5,200 kg 11,466 lbs
Size (L x W x H): without furnace 5.2 x 2.5 x 2.3 m 17' x 8’ 1"x 7' 5"

Details:
Features:
This machine can be used to produce zinc or magnesium castings

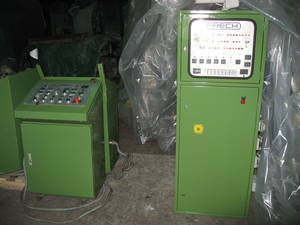

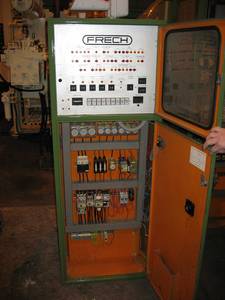

Frech programmable controller
3-phase injection system with intensification
Core pull units
Center hydraulic ejector
Automatic central lubrication
Motorized die height adjustment
Machine manuals
Needs gas or electric furnace
Availability:
Machine is ready for inspection and/or shipping
Technical data without obligation – subject to prior sale
