" ON HOLD " - GERESEVEERD -

DESCRIPTION OF LOW PRESSURE SYSTEM
Borli - USED

PRICE ........€ 45.000,-- ex works

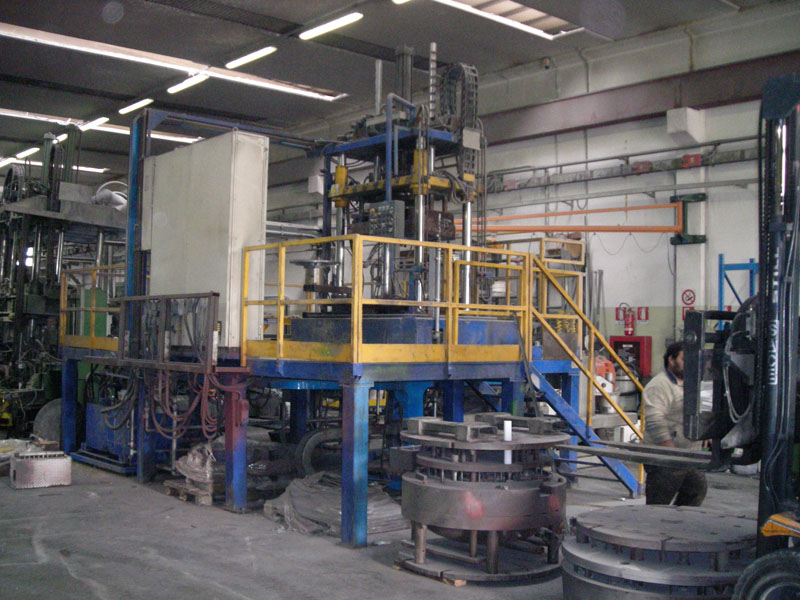

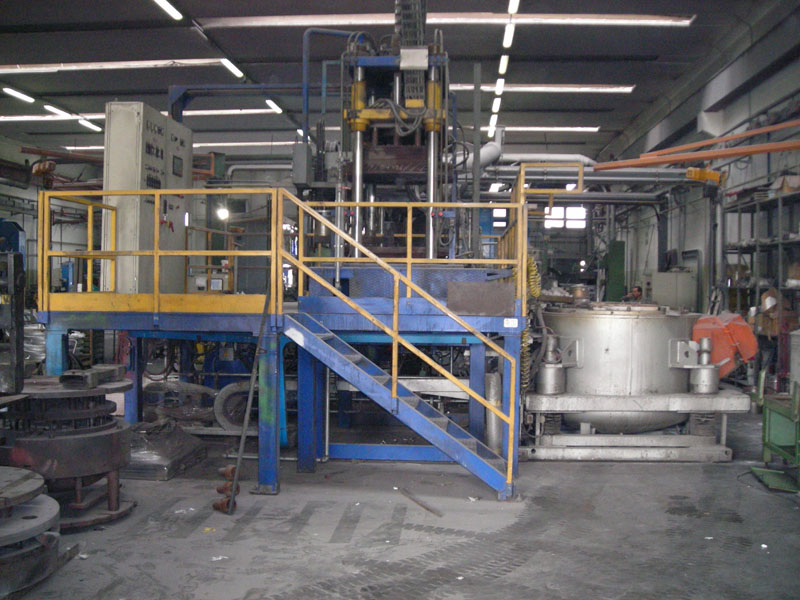

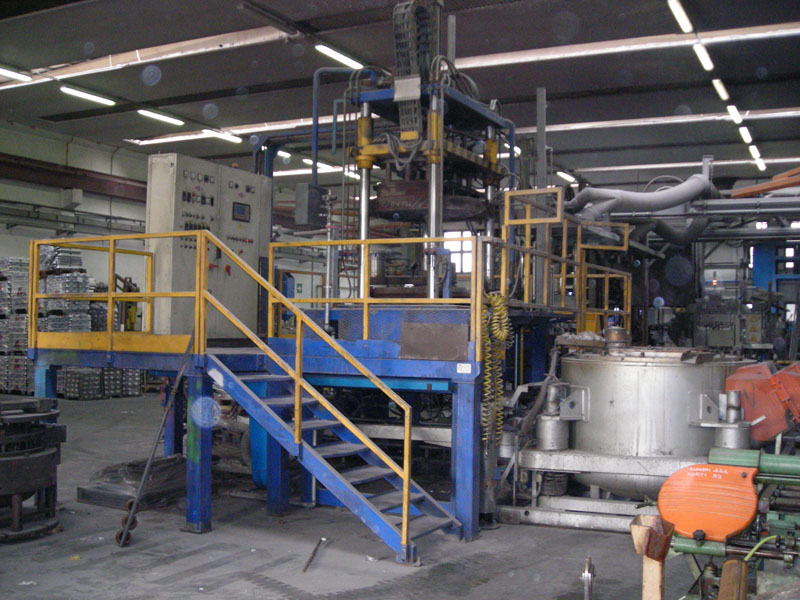

The plant consists of:
- Tubular steel support structure
- Press for the handling of the mold
- Furnace maintenance aluminum
- Hydraulic system
- Pneumatic
- Hydraulic circuit cooling
- Power module

Usable space between the fixed and mobile plans is variable between 470 r 1470 mm. and the light is between the columns of 1340x640 mm.

Hydraulic cooling
The machine is equipped with six cooling circuits of the mold, three on the upper platen of the press, three lower fixed on his plan

Control circuits and control
All types of machine, mold, furnace, in manual and automatic, are managed through a programmable controller (PLC)

Panel operator-machine dialogue
A PC with a video LCD and integrated keyboard with special softtware, allows the introduction and the recall of all parameters of the casting. In particular, the operator-machine dialogue system, the following functions are programmed command and control:
- STATE COOLING SYSTEMS IN REAL TIME. Times Temperature
- STATE PRESSURE provide real-time
- PARAMETERS OF CASTING RECIPE Pressure oven Mold cooling
- DISPLAY ALARMS
- PRESENCE OF CONSENT START CYCLE
- SAVING RECIPES, RECIPES LIST VIEW RECIPE RECALL

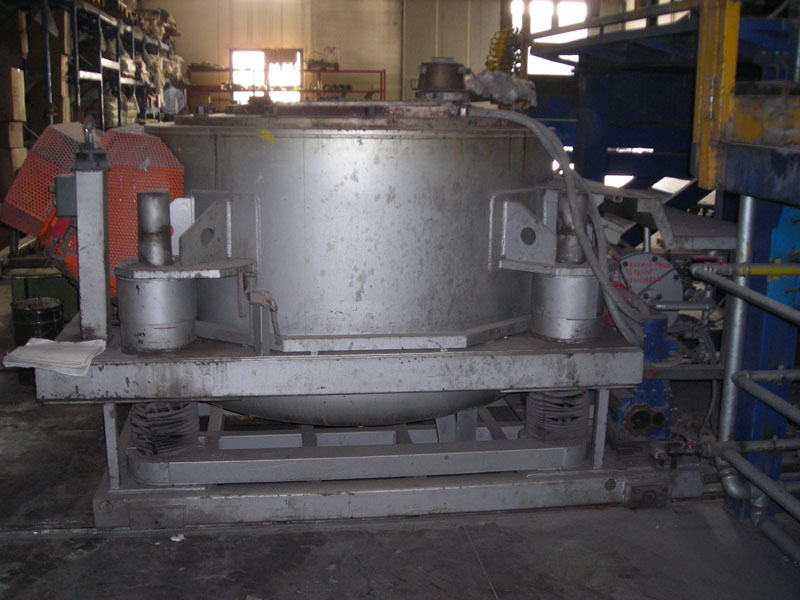

Aluminum holding furnace
The oven, in the basin, has a capacity of 1000 kg is tested to a pressure of 1.5 bar. E 'mounted on rails so as to allow the transfer to the outside dimensions of the support structure of the press for repair. The seal between the furnace and the mold is produced by four groups of coil springs. The heating furnace is provided by electric heaters powered by tirisfori, power for a total installed capacity of 24 kw.
