PLUME low pressure casting

Categorie: Lagedruk Gietmachine


Price - Prijs - Preis..........EURO 22.500,-- ex location

Description:

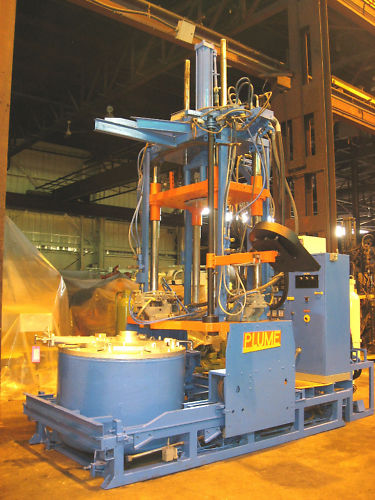

Item: Low Pressure - Permanent Molding - Vertical - Die Casting Machine
Manufacturer: A.W. Plume (U.K.)
Model: Economatic
Year Manufactured: 1996


Specifications: Metric Imperial
Distance Between Tie Bars (W x D): 1,100 x 600 mm 43" x 23.6"
Tie Bar Diameter: 102 mm 4"
Bottom Platen Size (W x D): 2,005 x 1,710 mm 78.9" x 67"
Movable Platen Size (W x D): 1,460 x 940 mm 57.5" x 37"
Die Height (min - max): 400 x 1,550 mm 15.7" x 61"
Die Stroke (max): 1,150 mm 45.3"
Ejection Stroke: 51 mm 2"
Furnace Holding Capacity (alum): 500 kg 1,102 lb
Motor: 18.5 kw 25 hp
Machine Weight (approx): 12,700 kg 28,000 lb
Machine Dimensions (L x W x H): 3,881 x 2,040 x 5,200 mm 12.7' x 6.7' x 17.1'


Details:
Features:
This machine can be used to cast a variety of parts such as rotors, wheels and many other type of castings
Allen Bradley PLC (Programmable Logic Controller) - Model SLC 5/20
Allen Bradley Operator Interface - Model Panelview 1400E
Four (4) - Core pull units
Hydraulic ejector platen ( bumper platen )
Automatic casting extractor tray
Full instructions "How to Cast Wheels" on this machine
Can cast up to a 21" (53 cm) diameter aluminum wheel rim
Full machine manuals with all drawings and schematics
Original Auxiliary Equipment Included:
Electric Resistance Holding Furnace - 500 kg capacity
Availability:
Machine is ready for inspection and/or shipping
Technical data without obligation – subject to prior sale
Specifications and machine location are subject to change without notice
